Smart Series
Pure RGB Laser Light Source for
Retrofitting Cinema Projectors
Laser Light Upgrade (LLU)
Designed for Series 2 Xenon Lamp Projectors
Overview

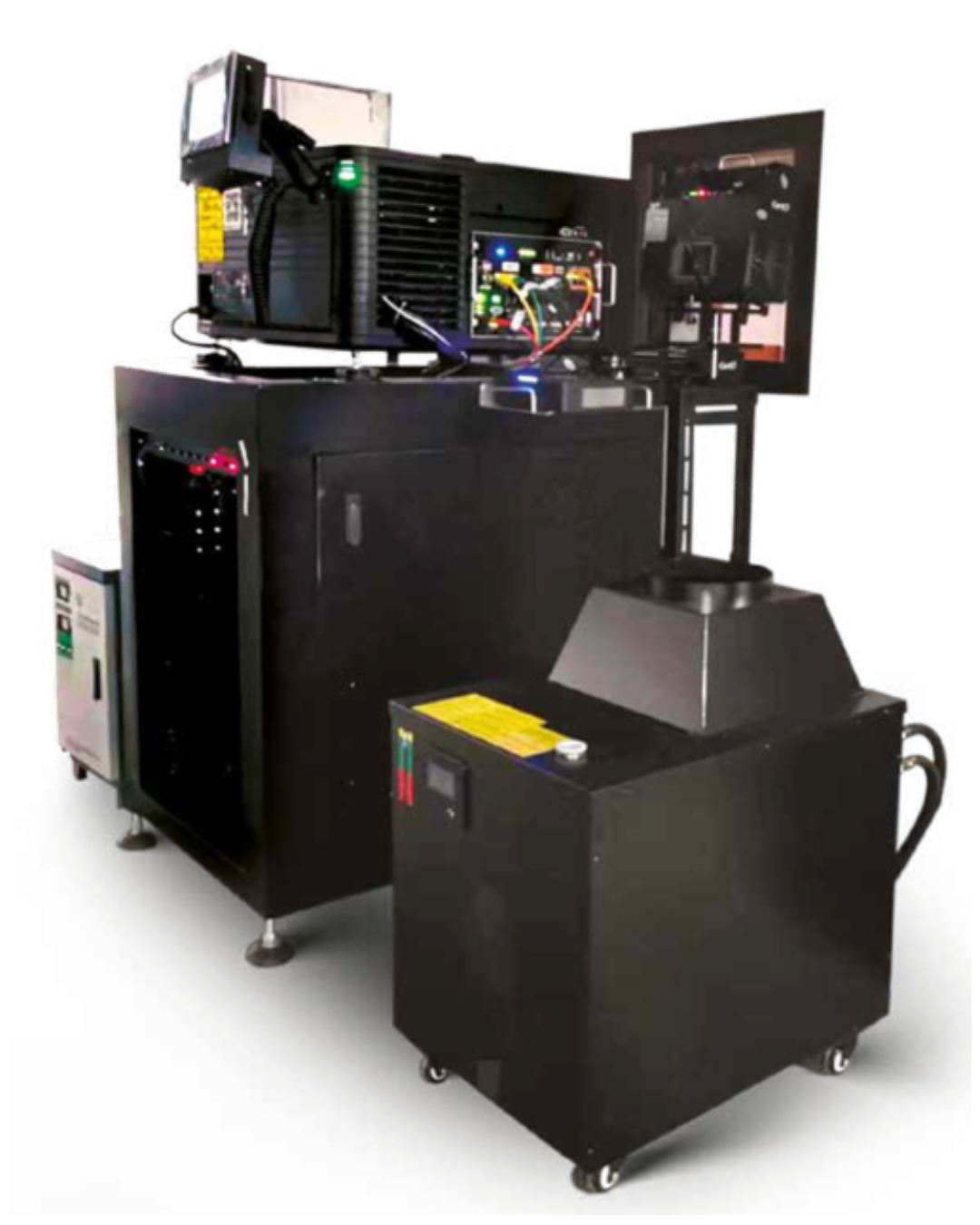

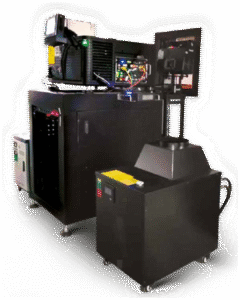

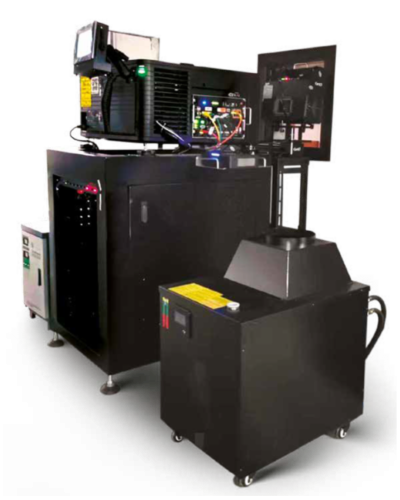

Introducing the fourth-generation CineUnion Smart Series RGB laser light source, designed to upgrade Series 2 projectors from a xenon lamp to pure RGB technology.
The fourth-generation model features a lightweight and compact design, which is easy to install, eliminating the labor required to change the lamp while providing increased brightness.
Additionally, the modular design enables easy plug-and-play component replacement during maintenance.
With the Laser Light Upgrade (LLU), audiences will experience exceptional projection image quality and exhibitors will reap the benefits of a more sustainable and exhibitors will reap the benefits of a more sustainable and efficient projection system.

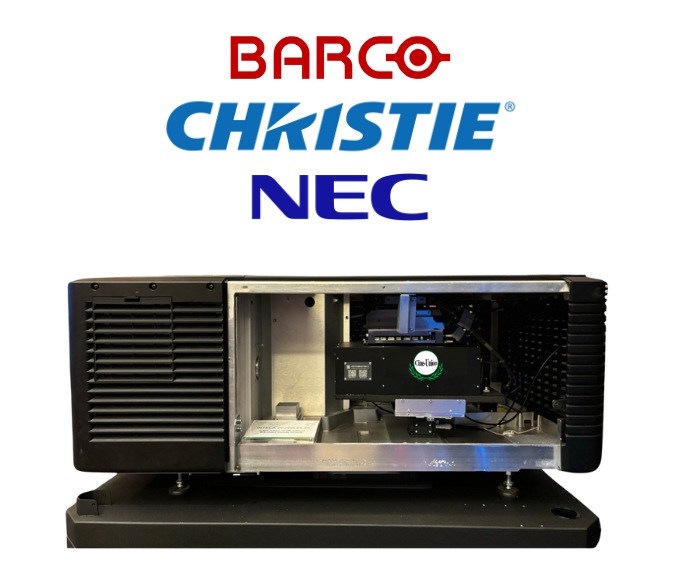

Designed for Barco, Christie and NEC S2 Projector
With the CineUnion RGB laser light source, this upgrade offers an impressive lifetime of up to 50,000 hours, ensuring long-lasting performance for more than 10 years, depending on daily usage.
To provide you with peace of mind, we also offer an optional extended warranty specifically designed for Barco, Christie, and NEC projection systems.
Audiences will experience a new level of visual excellence with our RGB Laser Light Upgrade. Achieve accurate and uniform color reproduction, supporting DCI-P3 color gamut, and capable of approaching the Rec. 2020 color gamut, ensuring vibrant and lifelike visuals, creating a stunning and immersive experience that complements the audio.
Key Benefits
Better than laser phosphor
RGB laser offers a longer lifespan and higher theoretical maximum brightness. The laser phosphor wheel will degrade over time and experience a significantly faster loss of brightness.
Long laser lifetime; Extend projector warranty
Eco-friendly
No xenon lamp costs
Embedded non-fiber design
Ultra-high brightness up to 40,000lm
Capable of increasing brightness greater than 120% of a xenon lamp.
Accurate and uniform color reproduction
Easy laser upgrade
Easy operation
Safe operation with a separate cooling system

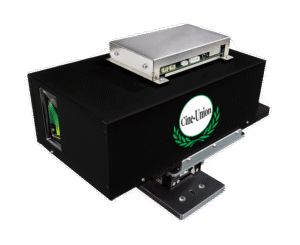

CineUnion Smart Series Laser Light Source Specifications
RGB
- R: (625±15)nm
- G: (525±10)nm
- B: (455±5)nm
- R: (x: 0.708±0.002y: 0.283±0.006)
- G: (x: 0.081±0.002y: 0.829±0.006)
- B: (x: 0.142±0.002y: 0.019±0.006)
- Separate water chiller with active liquid cooling
- Spatially free coupling
- Embedded in projector
- 50,000 hours under ideal conditions
- Operate laser light source from existing projector controls
- Automatic color adjustment (intelligent white balance)
- Support GDC NOC, TMS
- Monitor status through the network and automatically report faults
- EN 55032:2015
- EN 55035:2017
- EN 62368-1:2014 + A11:2017
- <16A AC
- 200-240VAC, 50-60Hz
- 75% relative humidity (laser light source and water chiller)
Display safety: the customers should take laser safety precautions (pay attention to hazard distances and separation heights) and comply with local laser display safety regulations.
Workplace safety: the customers should take the following safety measures:
- Workplace safety complies with local regulations.
- Provide basic laser safety training to operators.
- Implement the laser safety plan within the company.
- ‘Only trained personnel can enter area’ labels, etc.
- 3 years warranty
- 10,000 lumens
- 15,000 lumens
- 20,000 lumens
- 25,000 lumens
- 30,000 lumens
- 40,000 lumens
- 10,000 lumens: ≤10m (33ft)
- 15,000 lumens: ≤13m (42 ft)
- 20,000 lumens: ≤15m (49ft)
- 25,000 lumens: ≤16m (52ft)
- 30,000 lumens: ≤17m (56ft)
- 40,000 lumens: ≤19m (62ft)
- 10,000 lumens: ZC2S1L25-10; ZC208L25-10; ZC210L25-10; ZC215L25-10
- 15,000 lumens: ZC215L25-15; ZC220L25-15; ZC420L25-15
- 20,000 lumens: ZC215L25-20; ZC220L25-20; ZC420L25-20; ZC230L25-20; ZC430L25-20
- 25,000 lumens: ZC220L25-25; ZC420L25-25; ZC230L25-25; ZC430L25-25
- 30,000 lumens: ZC220L25-30; ZC420L25-30; ZC230L25-30; ZC430L25-30
- 40,000 lumens: ZC220L25-40; ZC420L25-40; ZC230L25-40; ZC430L25-40
- 10,000 lumens: Solaria One; CP2208/2308; CP2210; CP2215
- 15,000 lumens: CP2215; CP2220; CP4220
- 20,000 lumens: CP2215; CP2220; CP4220; CP2230; CP4230
- 25,000 lumens: CP2220; CP4220; CP2230; CP4230
- 30,000 lumens: CP2220; CP4220; CP2230; CP4230
- 40,000 lumens: CP2220; CP4220; CP2230; CP4230
- 10,000 lumens: ZB208L25-10; ZB210L25-10; ZB212L25-10; ZB215L25-10; ZB220L25-10
- 15,000 lumens: ZB212L25-15; ZB215L25-15; ZB220L25-15; ZB223L25-15; ZB423L25-15
- 20,000 lumens: ZB215L25-20; ZB220L25-20; ZB219L25-20; ZB419L25-20; ZB223L25-20; ZB423L25-20; ZB232L25-20; ZB432L25-20
- 25,000 lumens: ZB219L25-25; ZB419L25-25; ZB223L25-25; ZB423L25-25; ZB232L25-25; ZB432L25-25
- 30,000 lumens: ZB219L25-30; ZB419L25-30; ZB223L25-30; ZB423L25-30; ZB232L25-30; ZB432L25-30
- 40,000 lumens: ZB223L25-40; ZB423L25-40; ZB232L25-40; ZB432L25-40
- 10,000 lumens: DP2K-8S; DP2K-10S; DP2K-12C; DP2K-15C; DP2K-20C
- 15,000 lumens: DP2K-12C; DP2K-15C; DP2K-20C; DP2K-23B; DP4K-23B
- 20,000 lumens: DP2K-15C; DP2K-20C; DP2K-19B; DP4K-19B; DP2K-23B; DP4K-23B; DP2K-32B; DP4K-32B
- 25,000 lumens: DP2K-19B; DP4K-19B; DP2K-23B; DP4K-23B; DP2K-32B DP4K-32B
- 30,000 lumens: DP2K-19B; DP4K-19B; DP2K-23B; DP4K-23B; DP2K-32B DP4K-32B
- 40,000 lumens: DP2K-23B; DP4K-23B; DP2K-32B; DP4K-32B
- 15,000 lumens: ZN212L25-15
- 20,000 lumens: ZN212L25-20, ZN220L25-20
- 25,000 lumens: ZN232L25-25
- 30,000 lumens: ZN232L25-30; ZN432L25-30
- 15,000 lumens: NC1200C
- 20,000 lumens: NC1200C, NC2000C
- 25,000 lumens: NC3200S
- 30,000 lumens: NC3200S; NC3240S
- 10,000 lumens: <650W
- 15,000 lumens: <950W
- 20,000 lumens: <1250W
- 25,000 lumens: <1550W
- 30,000 lumens: <1850W
- 40,000 lumens: <2450W
- 10,000 lumens: 16.8(±1) kg; 37.04(±2.2) lbs
- 15,000 lumens: 28.7(±1) kg; 63.27(±2.2) lbs
- 20,000 lumens: 28.7(±1) kg; 63.27(±2.2) lbs
- 25,000 lumens: 29.7(±1) kg; 65.48(±2.2) lbs
- 30,000 lumens: 29.7(±1) kg; 65.48(±2.2) lbs
- 40,000 lumens: 32.7(±1) kg; 72.09(±2.2) lbs
- 10,000 lumens: 700 x 470 x 430 mm; 27.56 x 18.5 x 16.93 inches
- 15,000 lumens: 700 x 470 x 810 mm; 27.56 x 18.5 x 31.89 inches
- 20,000 lumens: 700 x 470 x 810 mm; 27.56 x 18.5 x 31.89 inches
- 25,000 lumens: 700 x 470 x 810 mm; 27.56 x 18.5 x 31.89 inches
- 30,000 lumens: 700 x 470 x 810 mm; 27.56 x 18.5 x 31.89 inches
- 40,000 lumens: 700 x 470 x 810 mm; 27.56 x 18.5 x 31.89 inches
CineUnion Water Chiller for Smart Series Laser Light Source Specifications
- 10,000 lumens
- 15,000 lumens
- 20,000 lumens
- 25,000 lumens
- 30,000 lumens
- 40,000 lumens
- 10,000 lumens: ZKC-0.5A/04
- 15,000 lumens: ZKC-0.5A/04
- 20,000 lumens: ZKC-0.5A/04
- 25,000 lumens: ZKC-1.0A/04
- 30,000 lumens: ZKC-1.0A/04
- 40,000 lumens: ZKC-1.5A/04
- 10,000 lumens: 750W
- 15,000 lumens: 750W
- 20,000 lumens: 750W
- 25,000 lumens: 1000W
- 30,000 lumens: 1000W
- 40,000 lumens: 1200W
- 10,000 lumens: 39(±1) kg, 86(±2.2) lbs
- 15,000 lumens: 39(±1) kg, 86(±2.2) lbs
- 20,000 lumens: 39(±1) kg, 86(±2.2) lbs
- 25,000 lumens: 45(±1) kg, 99(±2.2) lbs
- 30,000 lumens: 45(±1) kg, 99(±2.2) lbs
- 40,000 lumens: 64(±1) kg, 141(±2.2) lbs
- 10,000 lumens: 427 x 378 x 759 mm, 16.8 x 14.9 x 29.9 inches
- 15,000 lumens: 427 x 378 x 759 mm, 16.8 x 14.9 x 29.9 inches
- 20,000 lumens: 427 x 378 x 759 mm, 16.8 x 14.9 x 29.9 inches
- 25,000 lumens: 476 x 460 x 831 mm, 18.4 x 18.1 x 32.7 inches
- 30,000 lumens: 476 x 460 x 831 mm, 18.4 x 18.1 x 32.7 inches
- 40,000 lumens: 427 x 378 x 759 mm, 16.8 x 14.9 x 29.9 inches
- 10,000 lumens: 54(±1) kg, 120(±2.2) lbs
- 15,000 lumens: 54(±1) kg, 120(±2.2) lbs
- 20,000 lumens: 54(±1) kg, 120(±2.2) lbs
- 25,000 lumens: 64(±1) kg, 141(±2.2) lbs
- 30,000 lumens: 64(±1) kg, 141(±2.2) lbs
- 40,000 lumens: 88(±1) kg, 194(±2.2) lbs
- 10,000 lumens: 550 x 430 x 1050 mm, 21.65 x 16.93 x 41.34 inches
- 15,000 lumens: 550 x 430 x 1050 mm, 21.65 x 16.93 x 41.34 inches
- 20,000 lumens: 550 x 430 x 1050 mm, 21.65 x 16.93 x 41.34 inches
- 25,000 lumens: 600 x 500 x 1050 mm, 23.62 x 16.69 x 41.34 inches
- 30,000 lumens: 600 x 500 x 1050 mm, 23.62 x 16.69 x 41.34 inches
- 40,000 lumens: 770 x 550 x 1170 mm, 30.31 x 21.65 x 46.06 inches
*Actual brightness out of the projector may vary based on projector condition/optical losses
Technical specifications are subject to change without prior notice. You can obtain a copy of the Terms & Conditions that may apply by contacting your CineUnion representative
